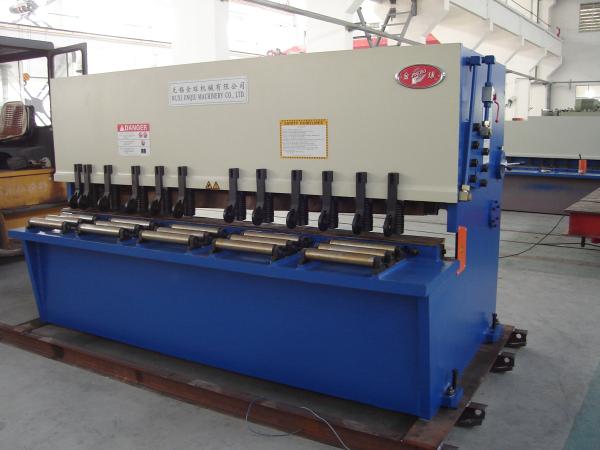

Fully Automatic Guillotine Shearing Machine / Sheet Metal Shear
Technical Parameters:
Mode: QC11Y-13X8000
Shearing Size: thickness 13mm, length 8000mm
Shearing Angle: 0.5-2 degree
Plate Clamps: 40 pieces
Strokes: 6 times per min
Back gauge range: 20-1000 mm
Main Motor: 75Kw
NC control system: China Estun E21S, with follwing founction:
1) control back gauge position
2) cutting gap control
3) cutting time control
4) parameter backup and restore
Volume of oil tank: 1749L
Weight: 62800 kgs
Overall Dimensions: Length 9255 mm
Width 3050 mm
Height 3545 mm
Product introduction:
1. Adopting rolling guild way with three-point suppoort, cutting accuracy could be maintained well
2. Rectangular blade has four edges to extend service life
3. The cutting angle could be adjusted to reduce the amount of deformation of the sheet
4. Blade gap could be adjusted accuratedly and rapidly, the top blades stroke could be adjusted stepless to improve cutting rage
5. Matching variety of back gauges and blade gaps which controled by CNC system
Quick Details:
Condition: New
Material/ Metal Processed: Carbon Steel Q235 or Q345
Extra Service: Machining
Electric componets: Schneider famous brand
Other parts: Ball screw, servo motor....
Place of Origin: Wuxi city, Jiangsu, China,
Machine Type: Hyraulic Shearing Mchine
Power: Hydraulic
Color: white, blue, yellow....
Control syste: E200S, DAC310,DAC 360, OR DTC660
Usage range: cutting metal sheet.
Packageing & Delivery
Packaging details: metal frame pallet
Delivery detail: 55-60 days
The Main Structure Character
Welded steel plate, the frame consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.
Why Choose Us?
Jinqiu is a famouse and long history brand in China, after more than 47 years research, our design from technology, structure and precision are very mature, many other factories just copy our outlooking, but the process is not advantages. And we also obtained the CE and more strict standard certification. Our machines distribute worldwide about 20 countries which penetrate into more metal plate industries.
Questions:
1. Are you a trading company or factory?
--- We are factory occupying more than 62,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 300 workers producing more than 1000sets machines each year.
2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.
3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.
4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.
5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.
6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What kind of metal plate and the thickness?
• How about your configuration requirement?
• You also send us your bend products image, our engineer can design for you.
These information is helpful for us to choose suitable equipment solution and price quickly.
